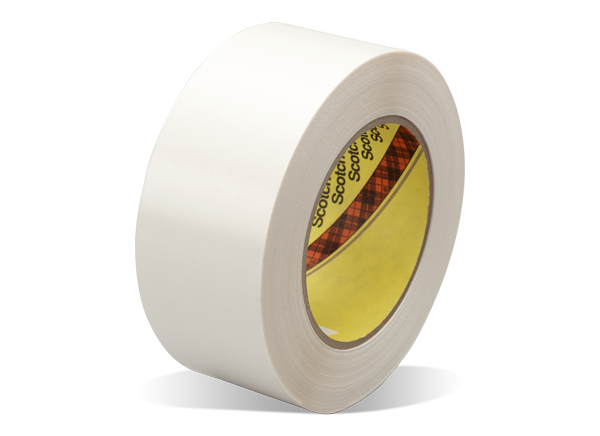

3M Electronic Specialty Water-Soluble Wave Solder Tape 5414
3M Electronic Specialty Poly-Vinyl Water-Soluble Wave Solder Tape 5414 has alcohol-backing and synthetic water-soluble adhesive. This water-soluble tape is for use in masking gold finger areas on printed circuit boards during wave soldering. The tape leaves no adhesive residue after removal and humidity extremes do not affect the tape properties.
Features
- No adhesive residue after removal
- Low static upon liner release and when taping circuit board
- Moisture barrier packaging plus desiccant
- Humidity extremes do not affect tape properties
- Easy manual and machine application
- Die-cuttable
Applications
- Masking of gold finger areas on printed circuit boards for wave soldering
Published: 2008-02-26
| Updated: 2022-03-11
