Alliance Memory 2GB/4GB/8GB LPDDR4 SDRAM

Alliance Memory 2GB/4GB/8GB LPDDR4 SDRAM is organized as 1 or 2 channels per device, and the individual channel is 8-banks and 16-bits. This product uses a double-data-rate architecture to achieve high-speed operation. The double data rate architecture is a 16n prefetch architecture with an interface. It's designed to transfer two data words per clock cycle at the I/O pins. These devices offer fully synchronous operations referenced to rising and falling edges of the clock. The data paths are internally pipelined and 16n bits prefetched to achieve very high bandwidth.


  • Configuration:
    • x32 for 2-channels per device (AS4C64M32MD4, AS4C128M32MD4, AS4C256M32MD4)
    • x16 for 1-channel per device (AS4C128M16MD4, AS4C256M16MD4)
    • 8 internal banks per each channel
  • On-Chip ECC:
    • Single-bit error correction (per 64-bits), which will maximize reliability
    • Optional ERR output signal per channel, which indicates ECC event occurrence
    • ECC Register, which controls ECC function
  • Low-voltage Core and I/O Power Supplies:
    • VDD2 /VDDQ = 1.06-1.17V, VDD1 = 1.70-1.95V
  • Low Voltage Swing Terminated Logic (LVSTL) I/O Interface
  • Internal VREF and VREF Training
  • Dynamic ODT :
    • DQ ODT: VSSQ Termination
    • CA ODT: VSS Termination
  • Selectable output drive strength (DS)
  • Max. Clock Frequency: 1.6GHz (3.2Gbps for one channel)
  • 16-bit Pre-fetch DDR data bus
  • Single data rate (multiple cycles) command/address bus
  • Bidirectional/differential data strobe per byte of data (DQS, DQS)
  • DMI pin support for write data masking and DBI functionality
  • Programmable READ and WRITE latencies (RL/WL)
  • Programmable and on-the-fly burst lengths (BL =16, 32)
  • Support non-target DRAM ODT control
  • Directed per-bank refresh for concurrent bank operation and ease of command scheduling
  • ZQ Calibration
  • Operation Temperature:
    • Automotive A2 (TC = -40°C to 105°C)
  • On-chip temperature sensor to control self-refresh rate
  • On-chip temperature sensor whose status can be read from MR4
  • RoHS-compliant, "green" packaging
  • Package:
    • 2Gb/4Gb: 200 ball FBGA (10mm x 14.5mm x 0.8mm)
    • 8Gb: 200 ball FBGA (10mm x 14.5mm x 1.1mm)

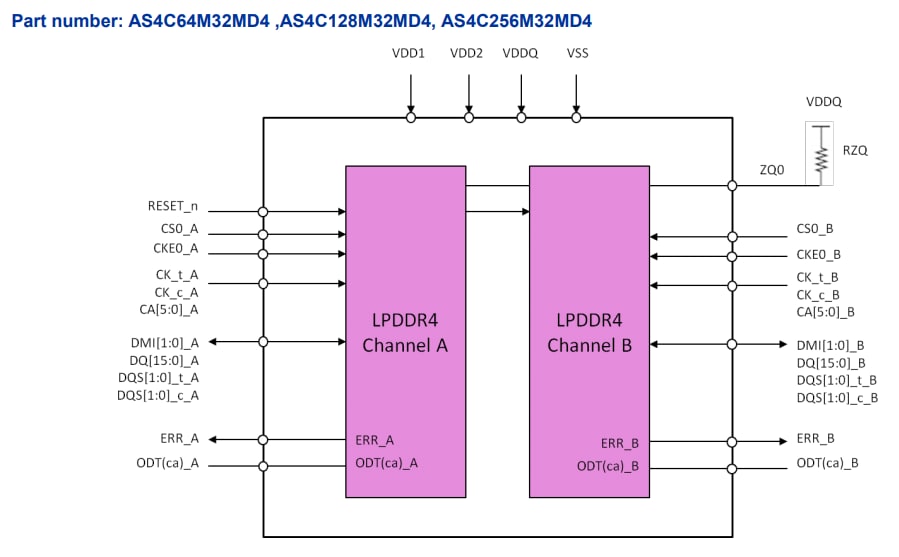

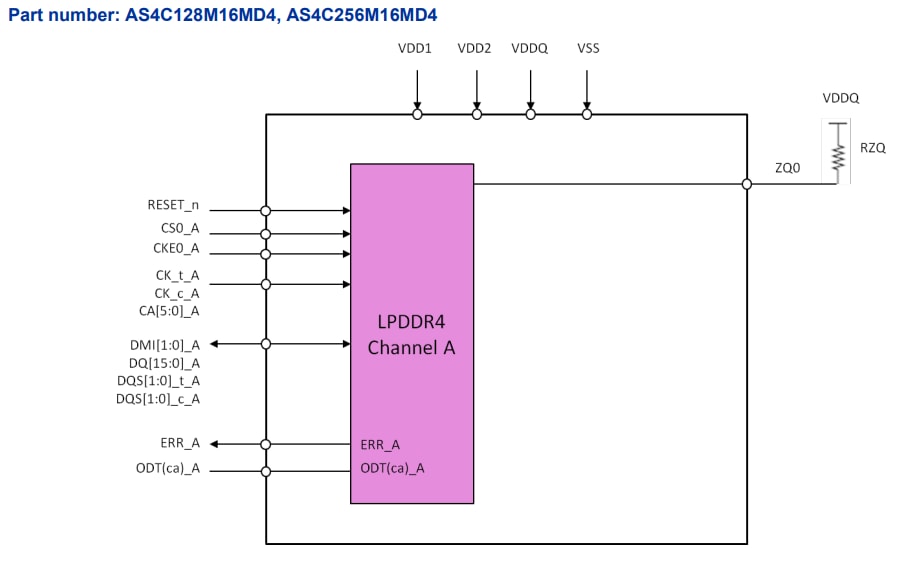

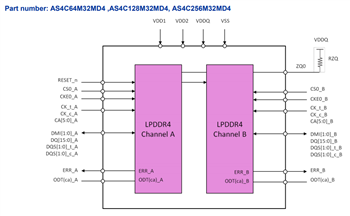

Block Diagram

Published: 2020-12-08 | Updated: 2022-03-11
