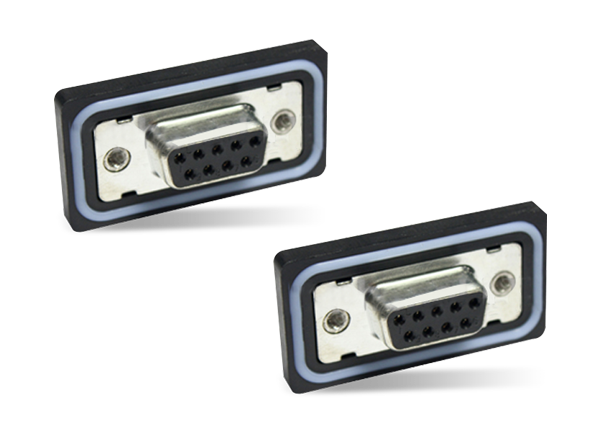

Amphenol LTW Standard D-Sub Connectors feature a rated current of 5A and an operating temperature range of -40°C to +105°C. The series provides a waterproof rating of IP67 or IP68 and is offered in a range of options, including receptacles, overmolded with cable, and field installable. Amphenol LTW Standard D-Sub Connectors are suitable for use in a variety of industries, including computer, industrial, medical, and military markets.
Receptacles, overmolded with cable, and field installable
5A rated current
-40°C to +105°C operating temperature range
IP67 or IP68 waterproof rating
≤20mΩ contact resistance
≥500mΩ insulation resistance at 500VDC
≥500VAC breakdown voltage (1 minute)
Amphenol LTW High Density D-Sub Connectors
2A rated current, -20°C to +105°C operating temperature range, and IP67 or IP68 waterproof rating.
