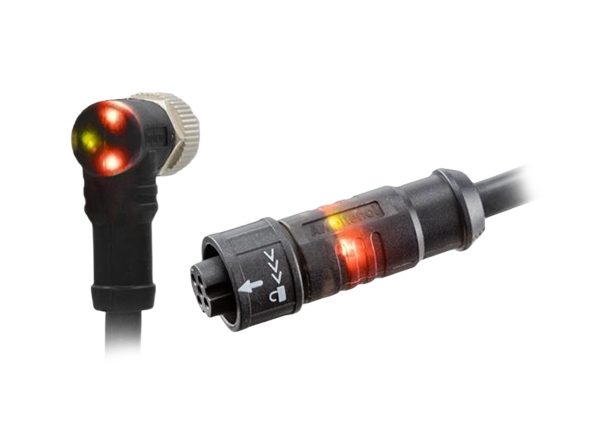

Amphenol LTW X-LOK Push-Lock Mini Size Connectors with LED
Amphenol LTW X-LOK Push-Lock Mini Size with LED are compact, locking industrial connectors with integrated LED indicators. Integrated LED indicators can be indispensable for quick and direct detection of faults in the field. Amphenol LTW X-LOK Push-Lock Mini features a keyed, locking mechanism with audio feedback for blind mating. These connectors feature IP68 protection, and up to 5 conductors.
Features
- 3 LED indicators built into the connector (Green, Orange, Orange)
- 3-, 4- and 5-pin configurations
- EN61373 / SAE J2839 shock and vibration approved
- Guided key for blind mating
- Push-lock with audio feedback
- Right angle and straight configurations
Applications
- Industrial
- Automation
- Automotive
Specifications
- IP68 protection rating
- ≥1,000 cycle service life
- -40°C to +105°C operating temperature
- Corrosion resistance up to 500 hours
LED diagram
Related Amphenol Connectors
Amphenol LTW X-Lok Connectors (IPX8)
Excellent performance in harsh environments with high temperatures and/or high humidity.
Published: 2021-08-16
| Updated: 2022-03-11
