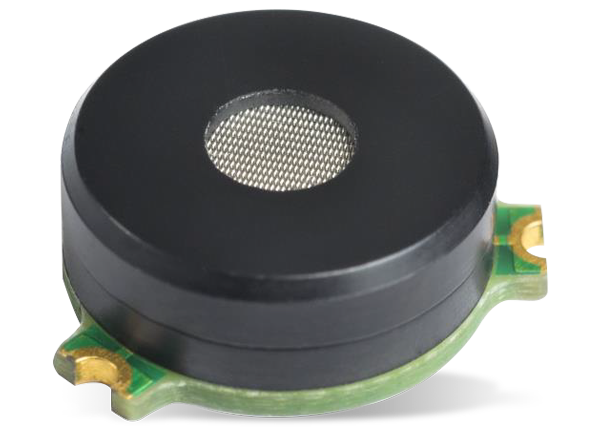

Amphenol SGX Sensortech MP7217 Miniature Catalytic Combustible Gas Sensor

Amphenol SGX Sensortech MP7217-DA Miniature Catalytic Combustible Gas Sensor is a low-power, poison-resistant, and robust device in a certified flameproof enclosure. This small-size pellistor is primarily optimized for methane response for up to 5% of volume in air and can detect other flammable gases and vapors. The silicon pellistor offers a low orientation effect and high resistance to mechanical shocks and is assessed as intrinsically safe. Amphenol SGX Sensortech MP7217-DA Miniature Catalytic Combustible Gas Sensor is ATEX and IECEx certified and ideal for use in battery operations and mining applications.

Features

  • Small size (Ø14mm)
  • Low power – designed for battery operation
  • Flameproof enclosure
  • Poison resistant
  • Low orientation effect
  • High resistance to mechanical shocks
  • Assessed as intrinsically safe
  • ATEX and IECEx certified

Specifications

  • Ambient temperature range
    • Operation/storage: -40°C to +60°C
    • Certified: -40°C to +75°C
  • 0 to 95% humidity range for operation and storage
  • 12mV/% minimum sensitivity (methane)
  • 2.9V to 3.1V DC supply to detectors
  • 39mA to 47mA typical power <96mA at power-on

Mechanical Dimensions

Mechanical Drawing - Amphenol SGX Sensortech MP7217 Miniature Catalytic Combustible Gas Sensor

Application Notes
