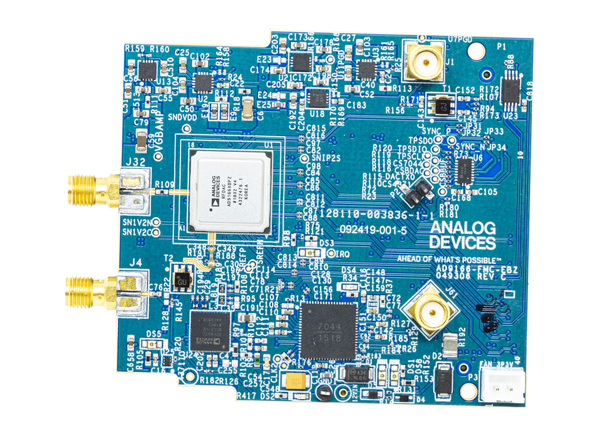

Analog Devices Inc. AD9166-FMC-EBZ Evaluation Board connects to an ADS7-V2EBZ pattern generator for quick evaluation of a high-speed AD9166 vector signal generator. The ADS7-V2EBZ board automatically formats the signal data and sends it to the evaluation board across a JESD204B link that simplifies the evaluation of the device. The AD9166-FMC-EBZ evaluation board is powered by the Field-Programmable Gate Array (FPGA) Mezzanine Card (FMC) power supply provided through the ADS7-V2EBZ. Ideally, the AD9166-FMC-EBZ evaluation board with the AD9166 signal generator can be used in instrumentation, electronic warfare, broadband communication systems, and load oscillator drivers.
Simple evaluation of the AD9166 vector signal generator IC with only a single connection
Connects to an ADS7-V2EBZ pattern generator for quick evaluation
Multiple on-board clock configurations are possible based on the HMC7044 and ADF4372
