Analog Devices Inc. ADP5072 Dual DC-to-DC Switching Regulator

Analog Devices ADP5072 Dual DC-to-DC Switching Regulator is a high-performance DC-to-DC regulator that generates independently regulated positive and negative rails. The input voltage range of 2.85V to 5.5V supports a wide variety of applications. The integrated main switch in both regulators enables the generation of an adjustable positive output voltage up to 35V and a negative output voltage down to -30V.


  • Input supply voltage range: 2.85V to 5.5V
  • Generates well regulated, independently resistor programmable VPOS and VNEG outputs
  • Boost regulator to generate VPOS output
    • Adjustable positive output to 35V
    • Integrated 1.0A main switch
  • Inverting regulator to generate VNEG output
    • Adjustable negative output to -30V
    • Integrated 0.6A main switch
  • 1.2MHz/2.4MHz switching frequency with optional external frequency synchronization from 1.0MHz to 2.6MHz
  • Resistor programmable soft start timer
  • Slew rate control for lower system noise
  • Individual precision enable and flexible start-up sequence control for symmetric start, VPOS first, or VNEG first
  • Out of phase operation
  • UVLO, OCP, OVP, and TSD protection

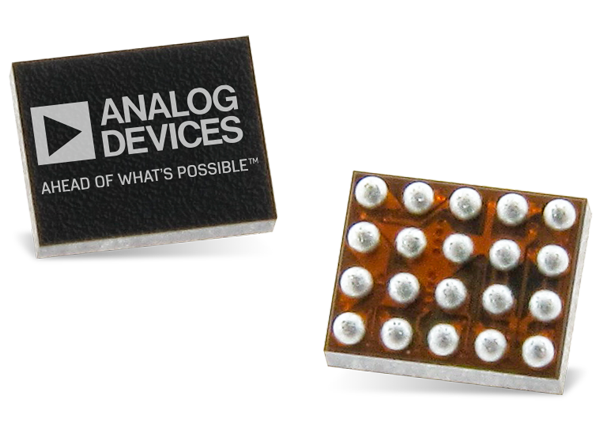

  • 1.61mm×2.18mm, 20-ball WLCSP
  • -40°C to +125°C junction temperature range


  • Bipolar amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and multiplexers
  • Charge-coupled device (CCD) bias supplies
  • Optical module supplies
  • RF power amplifier bias
  • Time of flight module supplies

Functional Block Diagram

Block Diagram - Analog Devices Inc. ADP5072 Dual DC-to-DC Switching Regulator
