Analog Devices Inc. ADPA7005-EVALZ Evaluation Board

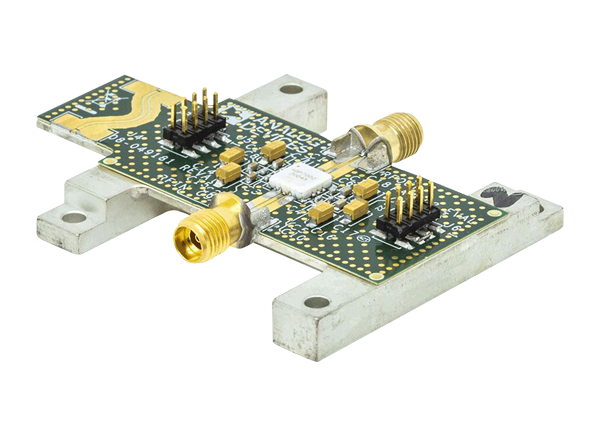

Analog Devices Inc. ADPA7005-EVALZ Evaluation Board consists of a two-layer Printed Circuit Board (PCB) from a 10mil thick, Rogers 4350B, copper-clad mounted to an aluminum heat-sink. The heat sink assists to provide thermal relief to the device as well as mechanical support to the PCB. This ADPA7005-EVALZ evaluation board comes with components suitable for use over the entire -40°C to 85°C operating temperature range. The evaluation board requires equipment like RF signal generator, spectrum analyzer, network analyzer, 5V and 2A power supply, and -1.5V and 100mA power supply.
Features
- 2-layer Rogers 4350 evaluation board with heat sink
- End launch 2.9mm RF connectors
- Through calibration path
Required Equipment
- RF signal generator
- RF spectrum analyzer
- RF network analyzer
- 5V and 2A power supply
- -1.5V and 100mA power supply
Related Product
Analog Devices Inc. ADPA7005 Power Amplifiers
GaAs, pHEMT, 32dBm (>1W), and MMIC amplifiers with an operating frequency range of 18GHz to 44GHz.
Published: 2020-03-02
| Updated: 2022-04-12
