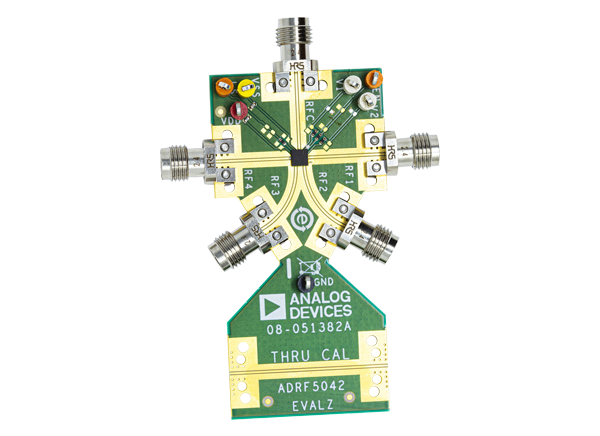

Analog Devices Inc. ADRF5042-EVALZ Evaluation Board
Analog Devices Inc. ADRF5042-EVALZ Evaluation Board is configured to evaluate the operation of the ADRF5042. The ADRF5042 Silicon Nonreflective SP4T Switches implement the silicon on insulator (SOI) process. The ADRF5042 features a 100MHz to 44GHz, an insertion loss of lower than 3.2dB, and isolation of higher than 35dB.
The ADI ADRF5042-EVALZ Evaluation Board includes the ADRF5042 device and application circuitry. The Board offers 2.4mm RF connectors and DC test points for supply and control. The ADRF5042-EVALZ Eval Board requires DC power supplies and a network analyzer.
Features
- Contains the ADRF5042 device and application circuitry
- 2.4mm RF connectors
- DC test points for supply and control
- Through line for calibration
Required Equipment
- DC power supplies
- Network analyzer
Associated Products
Analog Devices Inc. ADRF5042/43 Si Non-Reflective 44GHz SP4T Switches
Features 100MHz to 44GHz, an insertion loss of lower than 3.2dB, and isolation of higher than 35dB.
Scattering Parameter Test Setup Diagram
Layout

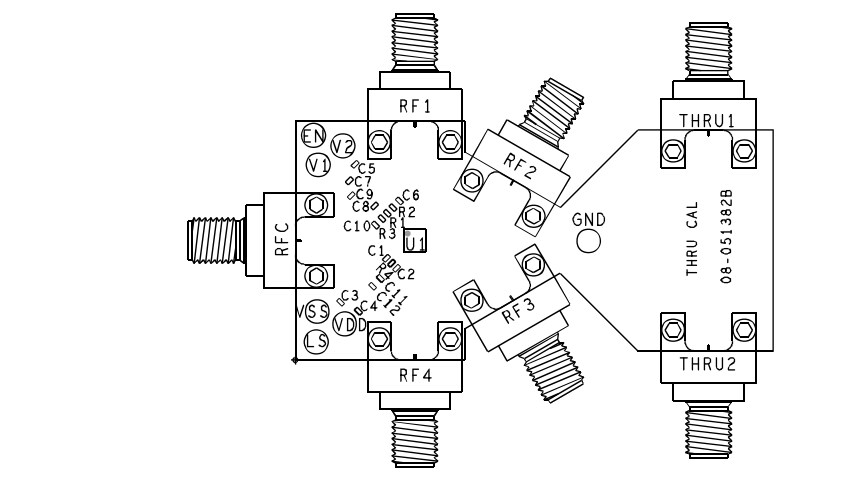

Assembly Drawing
Published: 2020-09-23
| Updated: 2022-03-11
