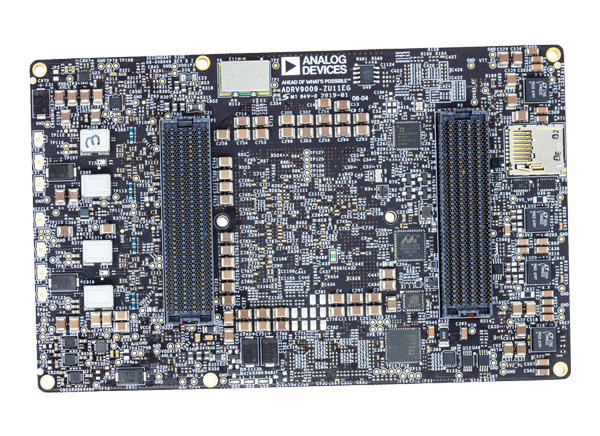

Analog Devices Inc. ADRV9009-ZU11EG RF System-on-Module offers wide bandwidth and tuning range for a broad range of applications. The device contains 2x Wideband ADRV9009 Dual Transceivers and Quad-core ARM® Cortex™-A53 MPCore™. 4GB of DDR4 (with ECC) is dedicated to the Programming System, while 2x2GB banks are dedicated to Programmable Logic, offering flexibility for developing custom applications. Carrier board ADRV2CRR-FMC is required to evaluate the ADRV9009-ZU11EG RF SOM and can be ordered separately.
Wide tuning range 75MHz to 6GHz
Max receiver BW 200MHz
Max transmitter synthesis BW 450MHz
Max observation receiver BW 450MHz
Integrated LO and Phase synch between all channels
Platform development environment support includes industry-standard Linux Industrial I/O applications, MATLAB®, Simulink®, and GNU Radio, and streaming interfaces for custom C, C++, Python, and C# applications
HDL reference designs and drivers to allow zero day development
