Analog Devices Inc. EV-ADF5904SD2Z Evaluation Board

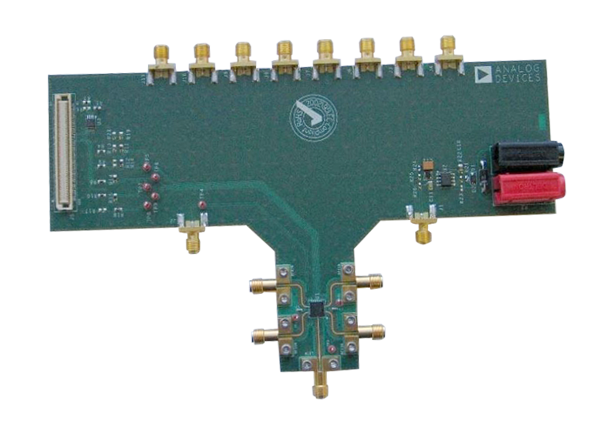

Analog Devices EV-ADF5904SD2Z evaluation board is designed to enable designers to easily evaluate the performance of the ADF5904 4-channel, 24GHz receiver downconverter. Each channel of the ADF5904 receiver downconverter includes a single-ended RF input with an on-chip balun followed by a differential low noise amplifier (LNA) and a downconverter mixer with differential output buffers. The EV-ADF5904SD2Z eval board includes the ADF5904, five high-frequency SMA connectors for the local oscillator (LO) input, four-receiver (Rx) inputs, eight SMA connectors for the baseband outputs, banana connectors for power supply, and a connector for the serial interface.
