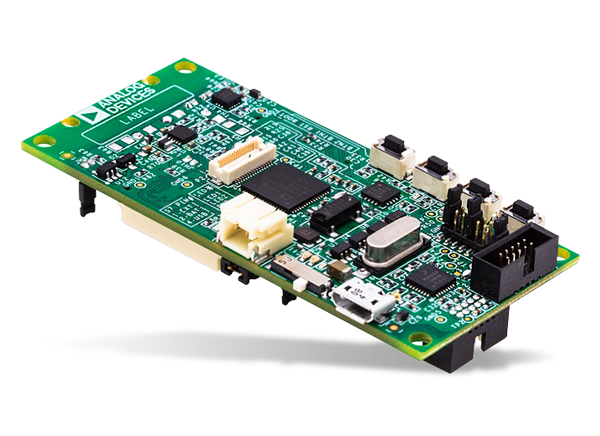

Analog Devices Inc. EV-COG-AD4050LZ Development Kit

Analog Devices Inc. EV-COG-AD4050LZ Development Kit is part of the EV-COG-AD4050 Modular Internet of Things (IoT) Development Platform. The EV-COG-AD4050LZ Development Platform is based on the ultra-low-power ADUCM4050 ARM Cortex M4F MCU with integrated power management for processing, control, and connectivity.

The EV-COG-AD4050 Modular IoT Development Platform from Analog Devices supports the ultra-low power technology used across the Analog Devices MCU and RF Transceiver Portfolios. The EV-COG-AD4050LZ development board uses CrossCore Embedded Studio, an open source Eclipse-based Interactive Development Environment (IDE). The platform includes many hardware and software example projects to help designers to prototype and create connected systems and solutions for the Internet of Things (IoT) applications.


  • On-board ultra-low-power ADUCM4050 ARM cortex M4F MCU
  • No external debugger/emulator tools required
  • Small form factor (75mm x 35mm)
  • Multiple power options – USB, coincell, external, Li-Ion
  • Onboard peripherals – accelerometer, temperature sensor
  • Compatible with ADI RF daughter cards, and RF modules
  • Compatible with ADI application add-on boards (Gears)
  • Expansion connectors and jumpers for providing external access to all MCU signals
Published: 2017-12-29 | Updated: 2023-01-13
