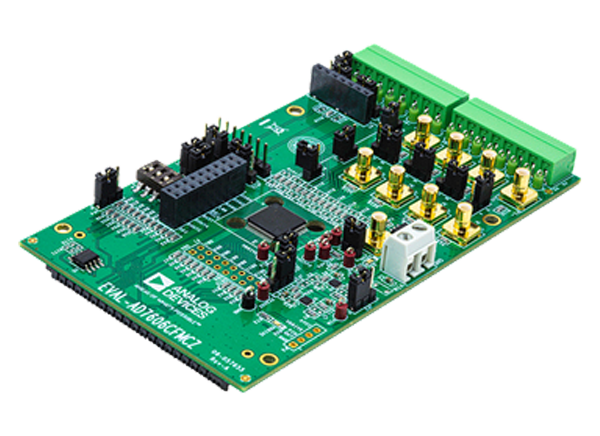

Analog Devices Inc. EVAL-AD7606CFMCZ Evaluation Board
Analog Devices Inc. EVAL-AD7606CFMCZ Evaluation Board allows users to evaluate the features of the AD7606C-18 and AD7606C-16 analog-to-digital converters (ADCs). The EVALAD7606CFMCZ is controlled by the EVAL-SDP-CH1Z (SDP-H1) system demonstration platform (SDP). The SDP-H1 controls the EVAL-AD7606CFMCZ through the USB port of a PC using the Analysis | Control | Evaluation (ACE) software.
Features
- Fully featured evaluation board for the AD7606C-18 and the AD7606C-16
- On-board power supplies
- Standalone capability
- SDP-H1 compatible
- PC software for control and data analysis
- Time and frequency domain
Required Equipment
- EVAL-SDP-CH1Z (SDP-H1) high speed controller board
- PC running
- Windows Vista SP2 (32-bit or 64-bit)
- Windows 7 SP1 (32-bit or 64-bit)
- Windows 8.1 (32-bit or 64-bit)
- Windows 10 (32-bit or 64-bit) with a USB 2.0 port
- DC and AC signal source
- SMB and USB cables
- External supply (optional)
Associated Products
Analog Devices Inc. AD7606C-18 8-Channel DAS with 18-bit 1 MSPS ADC
18-bit, simultaneous sampling, analog-to-digital Data Acquisition System (DAS) with eight channels.
Analog Devices Inc. ADP7118 / ADP7142 CMOS LDO Linear Regulators
20V and 40V CMOS low dropout linear regulators providing up to 200mA of output current.
Analog Devices Inc. ADR45xx Voltage References
Ultra-low noise, high-accuracy 2.048V to 3.3V voltage references suitable for portable equipment.
Associated Board
Analog Devices Inc. EVAL-SDP-CH1Z High-Speed Controller Board
High-speed controller board for the Analog Devices System Demonstration Platform (SDP).
