Analog Devices Inc. EVAL-ADPD1080Z-PRX Eval Kit for the ADPD1080 AFE

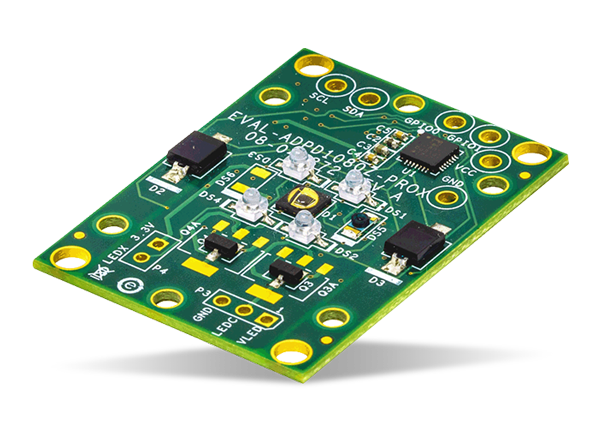

Analog Devices Inc. EVAL-ADPD1080Z-PRX Eval Kit for the ADPD1080 AFE provides a simple means of connecting with the ADPD1080 hardware, collecting data from the ADPD1080, and evaluating long-range proximity capabilities. The ADPD1080 hardware is configured with a large area, p-type, intrinsic, n-type (PIN) semiconductor photodiode as a proximity sensor. In this configuration, motion and proximity in front of the EVAL-ADPD1080Z-PRX are measured by detecting the amount of infrared (IR) light reflected off of objects and the change in IR light as objects move relative to the EVAL-ADPD1080Z-PRX.
The Analog Devices Inc. EVAL-ADPD1080Z-PRX Eval Kit for the ADPD1080 AFE requires the EVAL-ADPDM3Z and the Applications Wavetool, which can be downloaded from Analog Devices. The Applications Wavetool is a graphical user interface (GUI) that provides users with low level and high-level configurability, real-time data analysis, and user datagram protocol (UDP) transfer capabilities so that the evaluation board can easily connect to a PC.
Features
- UDP transfer capability
- Full configuration of the ADPD1080
- Register level
- Parameter level
- Graph views
- Time series view
- Long range proximity view
Kit Contents
- EVAL-ADPD1080Z-PRX Standard Evaluation Board
- USB-C Cable
Associated Product
Analog Devices Inc. ADPD1080 & ADPD1081 Photometric AFEs
Integrated 14-bit photometric ADC & 20-bit burst accumulator; works with flexible LED drivers.
