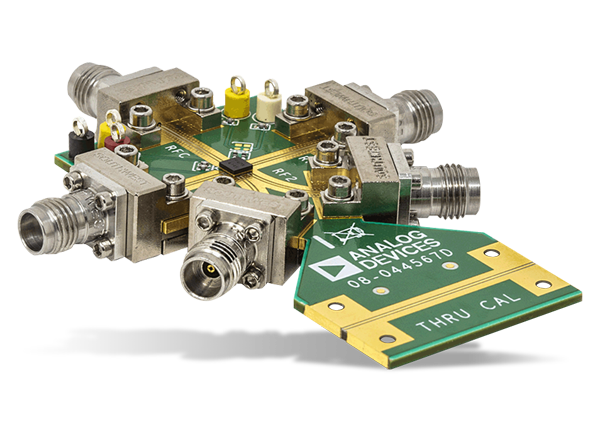

Analog Devices Inc. EVAL-ADRF5046 Evaluation Board is a demonstration and evaluation platform based on the ADRF5046 Silicon SP4T Reflective Switch. The EVAL-ADRF5046 is fully populated using 4-layer RO4003 PCB material, and designed for optimal high frequency performance. The total board thickness is 62mil, which allows 2.4mm RF launchers to be connected at the board edges. The EVAL-ADRF5046 features 7 RF connectors for RFC, RF1 through RF4, and THRU1 and THRU2.
Analog Devices Inc. ADRF5046 Si SP4T Reflective Switch (0.1-44GHz)
Broadband switch operating from 100MHz to 44GHz, with low insertion loss and high isolation.
