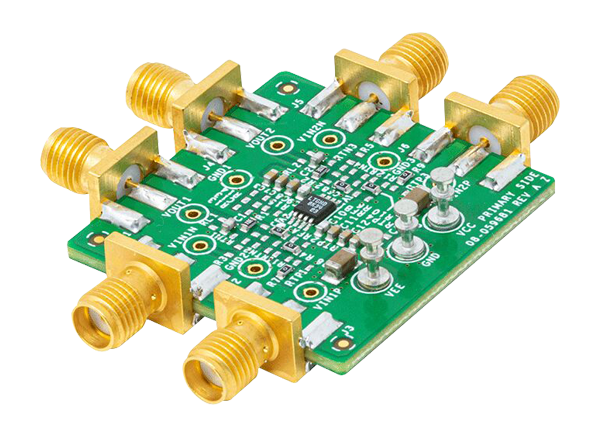

Analog Devices Inc. EVAL-LTC6229MS8E Eval Board

Analog Devices Inc. EVAL-LTC6229MS8E Eval Board is designed to evaluate the LTC6229 low distortion rail-to-rail output op-amps with shutdown. This eval board is a prepopulated board on a buffer configuration with a post-low-pass filter at a cutoff frequency of 142MHz. This configuration allows the LTC6229 op-amp to be used as a high-speed analog-to-digital driver. The EVAL-LTC6229MS8E board provides provisions for typical applications of the LTC6229 including a high-speed, low-voltage, low noise, in-amp, and as an active filter. This 4-layer eval board accepts edge-mounted SMA connectors on both inputs and outputs to provide an efficient connection to the test equipment and other circuitry. The EVAL-LTC6229MS8E eval board offers optimized power and ground planes for low noise and high-speed operation. This eval board accepts C0402 and C0603 SMT components and C1206 bypass capacitors for C5 and C6.


  • Enables efficient prototyping
  • User-defined circuit configuration
  • Edge mounted SMA connector provisions
  • Simple connection to test equipment and other circuits
  • RoHS compliant

Required Equipment

  • Dual output DC power supply
  • Dual-channel signal generator
  • Oscilloscope
  • Three banana plug to grabber cables
  • Four SMA to BNC male cables


Schematic - Analog Devices Inc. EVAL-LTC6229MS8E Eval Board


Analog Devices Inc. EVAL-LTC6229MS8E Eval Board
Published: 2020-02-27 | Updated: 2022-03-11
