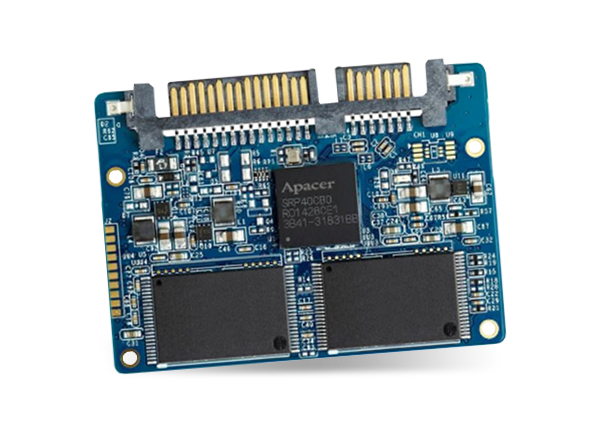

Apacer Technology Inc. SS210-297 1.8" Half Slim Solid State Drives

Apacer Technology Inc. SS210-297 1.8" Half-Slim Solid State Drives (SSDs) are well-balanced drives with a compact form factor that exhibits great performance. These drives are designed in SATA 6.0Gbps interface, delivering exceptional read/write speed. The 1.8" half-slim SSDs are engineered with DRAM for enhanced random performance and high data efficiency. These operate at -40°C to 85°C extended temperature range, and 5V supply voltage range.

The 1.8" half-slim SSDs offer more than 2,000,000 hours of mean time between failures based on SS210-297 prediction results. These drives feature powerful hardware ECC engine, power saving modes, wear leveling, and flash block management. The 1.8" half-slim SSDs offer Self Monitoring, Analysis, and Reporting Technology (SMART) with TRIM and power failure management. The 1.8" Half-Slim SSDs are ideal for heavy-loading industrial and server operations.

Features

  • SATA 6Gbps interface
  • Up to 86,000 IOPS random read
  • Up to 76,000 IOPS random write
  • DRAM cache
  • ATA-8 command set
  • Built-in hardware ECC
  • S.M.A.R.T.
  • Flash management:
    • Error correction/Detection
    • Flash block management
    • Global wear leveling
    • Power failure management
    • ATA secure erase
    • TRIM
  • Thermal sensor
  • Device sleep

Specifications

  • -40°C to 85°C extended operating temperature range
  • More than 2,000,000 hours of MTBF
  • Available in 4, 8, 16, 32, 64, 128GB capacities
  • 5V ± 5% supply voltage
  • SLC NAND flash type
  • Power consumption:
    • 470mA active mode
    • 85mA idle mode
  • Form factor:
    • JEDEC MO-297
    • 54×39.8×4mm packaging dimensions
  • Connector Type:
    • 7-pin SATA signal connector
    • 15-pin SATA signal connector

SATA Connectors Pin Assignment

Mechanical Drawing - Apacer Technology Inc. SS210-297 1.8
