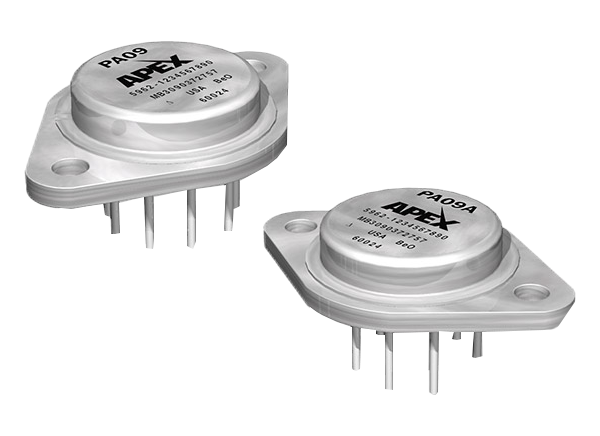

Apex Microtechnology PA09 Power Amplifiers

Apex Microtechnology PA09 Power Amplifiers feature a 2A continuous current, and a 5A peak current with 80V of power. The amplifiers drive a variety of loads from DC through the video frequency range. The PA09 has excellent input accuracy with a dual monolithic FET input transistor, cascoded by two high voltage transistors for outstanding common-mode characteristics. All internal current and voltage levels are referenced to a Zener diode biased on by a current source. This allows the PA09 to exhibit superior DC and AC stability over a wide supply and temperature range.

Features

  • 5A peak rating power MOS technology
  • 150MHz high gain-bandwidth product
  • 200V/μs very fast slew rate
  • Thermal shutoff protected output stage
  • Class A/B output excellent linearity
  • ±12V To ±40V wide supply range
  • FET Input low bias current, low noise

Applications

  • Video distribution and amplification
  • High-speed deflection circuits
  • Power transducers to 2MHz
  • Coaxial line drivers
  • Power LED or laser diode excitation

Typical Connection

Apex Microtechnology PA09 Power Amplifiers
