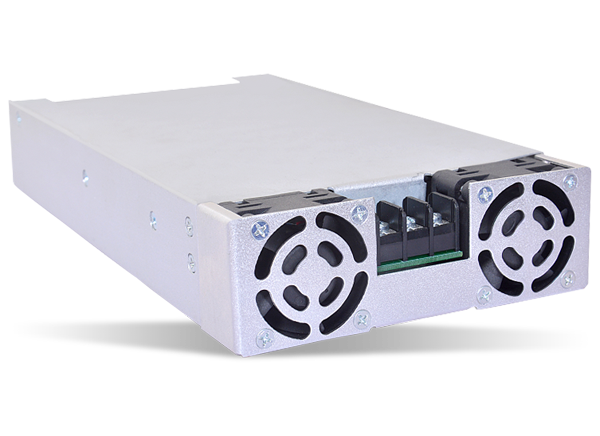

Bel Power Solutions ABE1000 Series AC-DC Power Supplies

Bel Power Solutions ABE1000 Series AC-DC Power Supplies feature an 85VAC to 264VAC wide universal AC input range. These power supplies offer up to 1000W of output power and a variety of single output voltages. The ABE1000 power supplies provide high efficiency and high power density ensuring minimal power loss in end-use equipment. This facilitates higher reliability, easier thermal management, and meets regulatory approvals for environmentally-friendly end products. These AC-DC power supplies from Bel Power Solutions are ideal for use in medical, telecom, datacom, industrial equipment, and other applications.

Features

  • 5" x 9.51" x 1.61" form factor
  • 85VAC to 264VAC wide universal AC input range
  • Current sharing
  • Up to 1000W output power
  • Fan cooled
  • Peak power capability
  • 5V standby provision

Applications

  • Instrumentation
  • Lighting
  • Industrial applications
  • Applied computing
  • Renewable energy
  • Test and measurement
  • Robotics
  • Wireless communication

Current Sharing Block Diagram

Block Diagram - Bel Power Solutions ABE1000 Series AC-DC Power Supplies

Performance Waveforms

Performance Graph - Bel Power Solutions ABE1000 Series AC-DC Power Supplies
Published: 2018-12-11 | Updated: 2022-09-02
