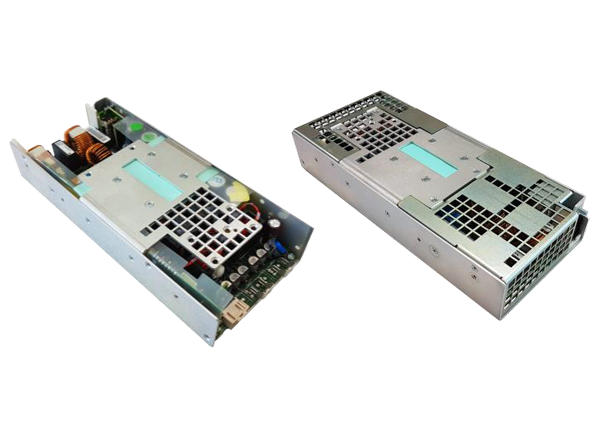

Bel Power Solutions MBE1200 1200W AC-DC Medical Power Supplies
Bel Power Solutions MBE1200 Series AC-DC Medical Power Supplies provide up to 1200W of regulated output power. The units have a wide input voltage range of 85VAC to 305VAC in single outputs of 24VDC or 48VDC. The series is available in three compact 1U height compatible packages: U-chassis, protective cover, and enclosed. The MBE1200 Series supports digital power management over the power management bus communications protocol. Multiple units can be connected in parallel for redundancy and/or higher power, enabled with the internal ORing and current sharing functions. Bel Power Solutions MBE1200 Series 1200W AC-DC Medical Power Supplies comply with the latest edition of the IEC/EN 60601-1 safety standards for medical equipment requiring 2x MoPP protection grade and displays the CE-Mark for the European low voltage directive (LVD).
Features
- Remote On/Off signal
- Low earth/touch leakage current
- Fan speed control function
- Built-in current sharing and ORing for parallel operation and N+1 redundancy
- Power management Bus communication protocol supported
- IEC 60601-1-2 4th edition EMC compliant
- IEC 60601-1 3rd edition medical safety approval
- 2x MoPP rated and BF appliances compatible
Applications
- X-Ray/CT scanner
- Laboratory/Analysis equipment
- Dental equipment
- Medical devices/Applications
Specifications
- Universal input voltage range
- 85VAC to 305VAC, MoOP
- 85VAC to 305VAC, MoPP
- 1200W rated power
- Up to 94% high efficiency
- 24VDC, 48VDC standard output voltages
- Stand by +12V, 0.5A and auxiliary 5V, 1A outputs
