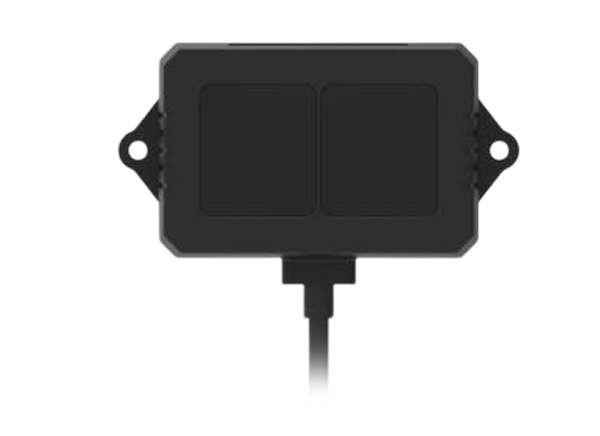

Benewake TF02-Pro LiDAR Mid-Range Distance Sensors

Benewake TF02-Pro LiDAR Mid-Range Distance Sensors are single-point ranging sensors with improved accuracy of different reflectivity which allows stable, accurate, sensitive, and high-frequency range detection. With a detecting range up to 40 meters, the components also offer up to 100Klux ambient light resistance, and up to 1000Hz frame rate. The TF02-Pro sensors are available with two formats of data output, the standard data output format and the character string data format, both of which are switchable with command. Phillips M2.5 round screws are recommended for installation (not included).

Features

Configurable parameters
- Communication interface
- Frame rate
- Baud rate
- Reset to default

Up to 40m range
Ambient light resistance (up to 100Klux)
High frame rate (up to 1000Hz)
Low power consumption
IP65 protection rating

Applications

Intelligent traffic
Intelligent parking lots

Material level monitoring
UAV

Specifications

Operating ranges
- 0.1m to 40m at 90% reflectivity
- 0.1m to 13.5m at 10% reflectivity
- 0.1m to 40m at 90% reflectivity (100Klux)
- 0.1m to 13.5m at 10% reflectivity (100Klux)
Accuracy
- ±5cm (0.1m to 5m)
- ±1% (5m to 40m)
1cm distance resolution
100Hz frame rate
100Klux ambient light resistance
Temperature ranges
- -20°C to +60°C operating
- -30°C to +80°C storage
VCSL light source
850nm central wavelength
3° FOV
EN60825 photobiological class 1 safety
5V_DC to 12V_DC supply voltage

≤200mA average current
≤1W power consumption
300mA peak current
LVTTL communication level (3.3V)
69mm x 41.5mm x 26mm (LxWxH) in dimension
50g in weight (with cables)
PC/ABS enclosure material
80cm cable length
Communication interfaces
- UART
  - 115200 baud rate
  - 8 data bits
  - 1 stop bit
- I2C
  - 400kbps maximum transmission rate
  - lave mode
  - 0x10 default address
  - 0101 to 0x7F address range
