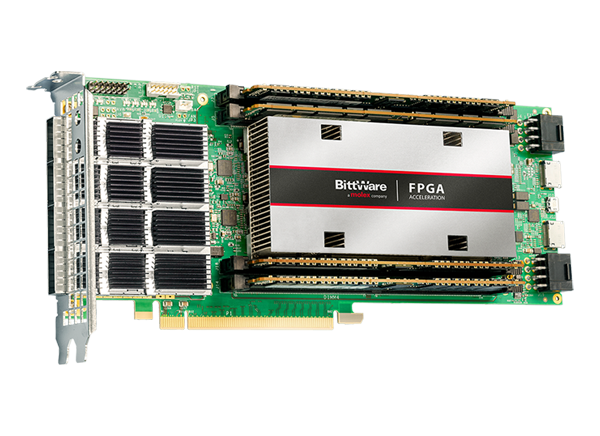

BittWare XUP-VV8 FPGA Accelerator Card

BittWare XUP-VV8 FPGA Accelerator Card features the Xilinx FPGA in a 3/4-length PCIe board, including QSFP-DD (double-density) cages for maximum port density. The XUP-VV8 supports up to 8x 100GbE or 32x 10/25GbE using the Virtex UltraScale+ VU13P or VU9P FPGA. The FPGA provides large logic resources up to 3.8M logic cells, as well as 455Mb of embedded memory.

The BittWare XUP-VV8 FPGA Accelerator Card offers a jitter cleaner to support synchronous ethernet. If external memory on the DIMMs is not required, the board can be configured as single width.


  • Four QSFP-DD for up to 8x 100GbE
  • Air or liquid cooled
  • Up to 3.8M logic cells and 455Mb embedded RAM


  • FPGA
    • Virtex UltraScale+
    • VU9P or VU13P in D2104 package
    • Core speed grade - 2
  • On-board Flash
    • Flash memory for booting FPGA
  • External memory
    • 4 DIMM sites, each supporting:
      • Up to 128 GBytes DDR4 x72 with ECC
      • Up to 576 Mbits dual QDR-II+ x18 (2 independent 288 Mbit banks)
  • Host interface
    • x16 Gen3 interface direct to FPGA
  • USB ports
    • Micro USB: access to BMC, FPGA JTAG, and FPGA UART
  • Timestamp
    • 1 PPS input and 10MHz clock input
  • OCuLink
    • 2 OCuLink on rear edge, each connected to FPGA via 4x GTY transceivers
  • QSFP cages
    • 4 QSFP-DD cages on front panel
    • Each supports 2x 100GbE, 2x 40GbE, 8x 25GbE, or 8x 10GbE
    • Jitter cleaner for network recovered clocking
  • Cooling
    • Dual-width passive heatsink - standard
    • Single-width passive heatsink - optional (Available on boards with no external memory)
    • Dual-width active heatsink - optional
    • Dual-width liquid cooling - optional
  • Board Management Controller
    • Voltage, current, temperature monitoring
    • Power sequencing and reset
    • Field upgrades
    • FPGA configuration and control
    • Clock configuration
    • I2C bus access
    • USB 2.0
    • Voltage overrides
  • Electrical
    • On-board power derived from 12V PCIe slot & two AUX connectors (8-pin)
    • Power dissipation is application dependent
  • Environmental
    • Operating temperature 5°C to 35°C
  • Form factor
    • 3/4-length, standard-height PCIe dual-width board
    • Single-width option (Available on boards with no external memory)
    • 10 x 4.37 inches (254 x 111.15mm)
  • System development
    • BittWorks II Toolkit – host, command, and debug tools for BittWare hardware
  • FPGA development
    • FPGA Examples – example Vivado projects, available with the BittWorks II Toolkit
    • Xilinx Tools – Vivado® Design Suite

Block Diagram

Block Diagram - BittWare XUP-VV8 FPGA Accelerator Card
