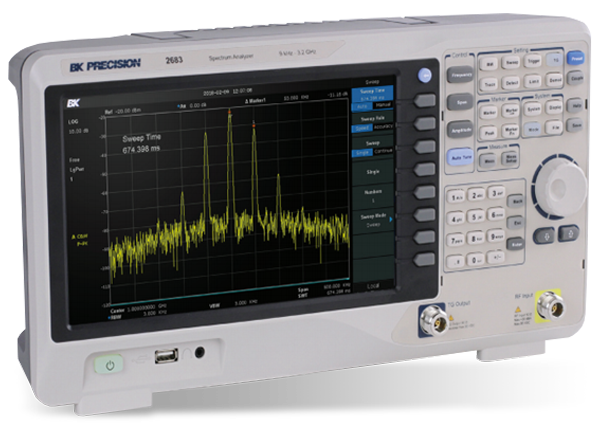

B&K Precision 2680 Spectrum Analyzers provide a standard pre-amplifier and tracking generator with a frequency range of 9kHz to 2.1GHz or 3GHz. These analyzers help in visualizing the waveform and make precision measurements such as occupied bandwidth, third-order intercept, and 2D and 3D spectrum monitor. Additional features include low phase noise, high sensitivity, 1Hz minimum resolution bandwidth (RBW), low-level uncertainty, widescreen color display, as well as LAN and USBTMC connectivity. B&K Precision 2680 Spectrum Analyzers are ideal for two-way radio, EMI pre-compliance, site surveying, and characterizing the frequency response of RF devices.
10.1" widescreen 1024 x 600 color display
LAN and USBTMC connectivity
USB host port to store and recall waveform data, setups, and screen captures
9kHz to 2.1GHz or 3.2GHz frequency range
1Hz minimum RBW
High sensitivity of 161dBm/Hz displayed average noise level (DANL)
Low phase noise of -98dBc/Hz at 10kHz offset
Low-level uncertainty of ±0.7dB
Preamplifier and tracking generator are standard
Characterizing the frequency response of RF devices.
