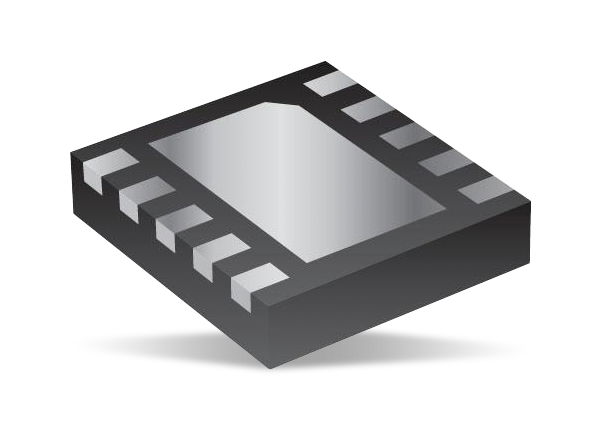

Bourns CDDFN10 TVS Diode Arrays provide ESD protection for high-speed data ports and meet IEC 61000-4-2 (Level 4) requirements. The transient voltage suppressor arrays, protecting up to six data lines, offer work peak reverse voltages of 5V (one line), 3.3V (two lines), and 2.2V (four lines) compatible with USB 3.1. These DFN10 packaged devices have an ultra-low 0.02pF typical capacitance between I/O lines. This allows the devices to be used for protecting sensitive components used on high-speed interfaces. The small footprint allows for flow-through routing on the PCB, helping to maintain matched impedances of the high-speed data lines.
ESD protection for high-speed data ports
Meets IEC 61000-4-2 (Level 4) requirements
Protects up to 4 or 6 data lines
2.2V to 5V work peak reverse voltage ratings
Bourns CDDFN10-2574N TVS Diode Array
Combines 2.5V TVS diode with steering diodes to provide protection for eight high-speed data lines.
