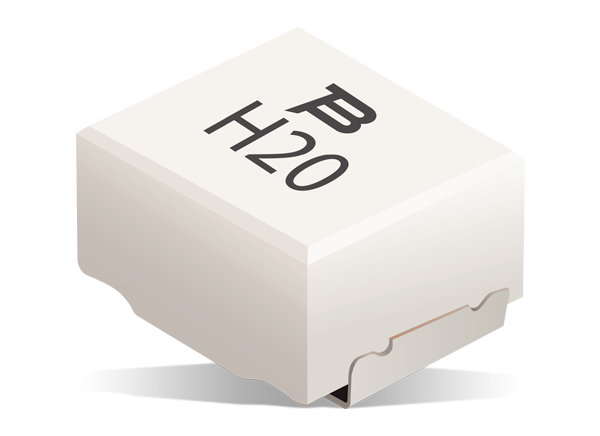

Bourns SF-2923HC-C SinglFuse™ SMD Fuses

Bourns SF-2923HC-C SinglFuse™ SMD Fuses are designed with high-current ceramic housing for overcurrent protection. These fuses utilize a robust ceramic cube housing, silicone insulation, and a single fuse-termination element. This enables the products to withstand higher inrush current with higher reliability in harsh environments and more effective fusing action when opening. Bourns SF-2923HC-C SinglFuse SMD fuses are UL 248-14 listed and are intended for use in a variety of power applications. Typical applications include lithium-ion battery packs, power tools, Power Factor Correction (PFC), Energy Storage Systems (ESS), and electric assist bicycles.


  • Single blow fuse for overcurrent protection
  • EIA 2923 (7358 metrics) footprint
  • Ultra-high current ceramic housing design
  • UL 248-14 listed
  • Surface mount packaging for automated assembly
  • RoHS compliant and halogen-free


  • Li-ion battery packs
  • Energy storage systems (ESS)
  • Power tools
  • Electric assist bicycles
  • Servers and routers
  • Uninterruptible power supplies (UPS)
  • Power distribution units (PDUs)
  • Power factor correction (PFC)


  • 20A to 50A rated current range
  • 60VDC rated voltage
  • 300A interrupting rating
  • -55°C to +125°C operating temperature range
  • Storage conditions
    • 15°C to 30°C temperature
    • 20% to 70% humidity


Mechanical Drawing - Bourns SF-2923HC-C SinglFuse™ SMD Fuses
Published: 2019-02-06 | Updated: 2023-03-15
