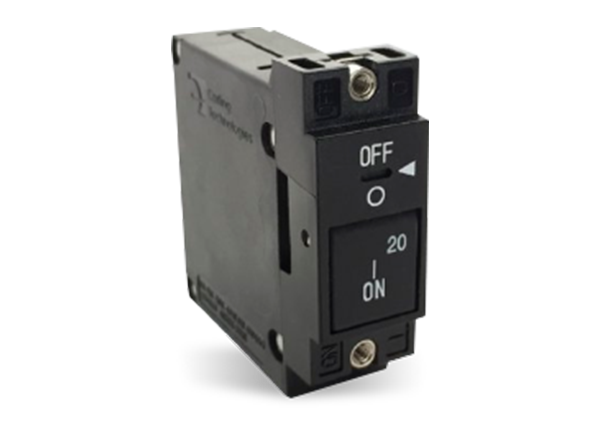

Carling Technologies B-Series Circuit Breakers are hydraulic/magnetic circuit breakers designed for use in world market applications where temperature stability and compact size are required. The series offers precision operation even in extreme temperatures. Carling B-Series Circuit Breakers are available with up to 50A and up to 277VAC or 80VDC, with a choice of time delays, terminals, and actuators.
-40°C to +85°C operating temperature range
1 to 6 poles
0.02A to 50A current
Up to 277VAC or 80VDC voltage
Choice of time delays, terminals, and actuator colors
