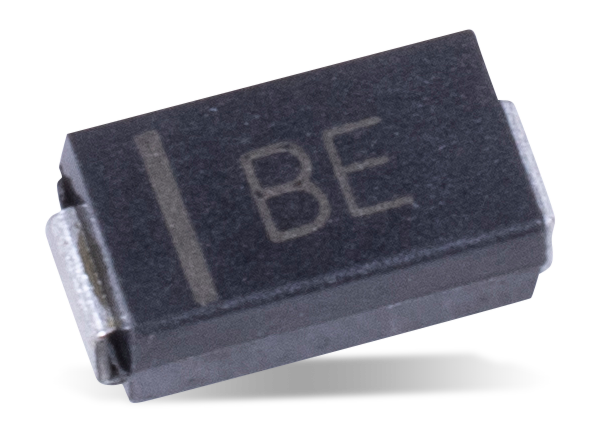

KYOCERA AVX SMxJ Transient Voltage Suppression (TVS) Diodes

KYOCERA AVX SMxJ Transient Voltage Suppression (TVS) Diodes are designed in a common general-purpose format and are based on low leakage, high-reliability glass passivated chip rectifier technology. These KYOCERA AVX TVS diodes are industry-standard components with three peak power ratings: 400W, 600W, and 1500W. The glass-passivated chip diodes feature flat clamping characteristics, unidirectional or bidirectional polarity, and very fast response times.


  • Glass-passivated chip
  • Flat clamping
  • Low leakage
  • Very fast response time
  • Low profile package
  • Bidirectional or unidirectional polarity
  • Halogen-free
  • Lead-free terminations


  • General-purpose transient inductive load protection
    • Industrial
    • Telecom
    • Computer
  • Back-up low power batteries
  • Battery-powered LED circuits
  • Hand-held devices
  • Aftermarket add-ons
    • Radio
    • GPS
  • DC-powered systems


  • 400W, 600W, and 1500W types (10/1000us)
  • 5V to 440V working voltage
  • -55°C to +150°C operating junction and storage temperature range
  • 40A to 200A peak forward surge current (8.3ms single half sine-wave uni-directional only)
  • ≤1μA leakage current for 12V and up
  • Typical thermal resistance junction
    • 75°C/W to 120°C/W to air
    • 15°C/W to 30°C/W to case

Dimensions: inches (mm)
