KYOCERA AVX TCN Undertab Conductive Polymer Chip Capacitors

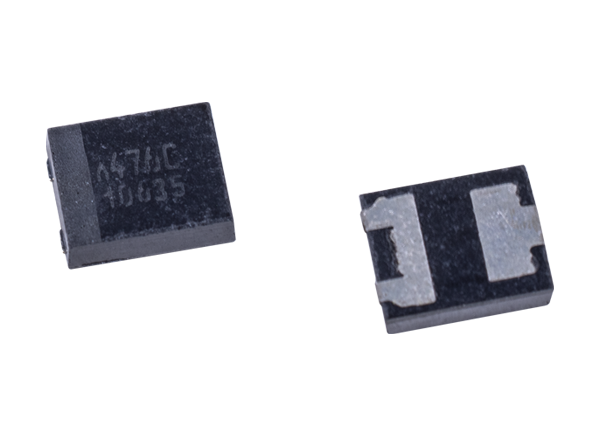

KYOCERA AVX TCN Undertab Conductive Polymer Chip Capacitors feature conductive polymer electrodes and a benign failure mode under recommended use conditions. The TCN series offers low ESR and a low profile. The J-CAP™ variant offers high energy. Both versions feature undertab termination layouts that offer high volumetric efficiency, high PCB assembly density, and high capacitance in small dimensions. KYOCERA AVX TCN Undertab Conductive Polymer Chip Capacitors are available in a broad range of case sizes.
Features
- Undertab terminations layout provides
- High volumetric efficiency
- High PCB assembly density
- High capacitance in smaller dimensions
- High energy (J-CAP variant)
- Conductive polymer electrode reduces ignition failure mode
- Low ESR
- 3x reflow +260°C compatible
- Lead free and RoHS compliant
Applications
- Smartphones
- Tablets
- Notebooks
- LCD TVs
- Power supplies
- Bulk decoupling of systems on chip (SoC)
Specifications
- 4VDC to 35VDC rated voltage range
- 4.7µF to 1500µF capacitance range
- ±20% capacitance tolerance
- 500mΩ ESR maximum
- -55°C to +105°C or +125°C temperature range
