Microchip Technology LXE/LXK330x Linear Position Sensor Boards & Kits

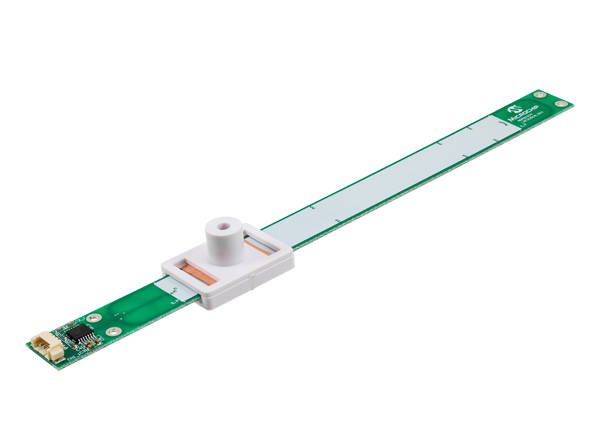

Microchip Technology LXE/LXK330x Linear Position Sensor Boards and Kits feature LX3301A/LX3302A sensors with a 100mm measurement range. These LXE330x evaluation boards include passive components installed, connector, and cable for interface to the Integrated Programming and Calibration Environment (IPCE) programmer. The LXK330x evaluation kits contain LXE330x boards, an IPCE programmer that links to IPCE software, and applicable cables.
Features
- IPCE interface programmer LXM9518:
- Simplified sensor system calibration and testing
- Programs EEPROM
- Simulates position output
- Auto calibration
- Stand-alone TCP/IP addressable software for production
- 5VDC power source
Kit Contents
- Inductive position sensor PCB with target assembly
- IPCE interface programmer LXM9518
- 4pin to 10pin cable between LXM9518 and sensor PCB
- USB power cable
- IPCE Software downloaded from Microchip Technology
LXK330x Evaluation Kits
Additional Resource
Published: 2020-12-10
| Updated: 2022-03-11
