ARCOL / Ohmite FPA Thick Film Power Resistors

ARCOL FPA Thick Film Power Resistors feature noninductive designs for a variety of applications. The FPA100 and FPA250 modules are ideally suited for high frequency and pulse load applications. The FPA100 is available connected as 2 terminals or 4 terminals, in parallel or series. The FPA2K is ideal for variable speed drivers, power supplies, control devices, robotics, motor control, and other power designs. The FPA2K's easy mounting fixture guarantees an auto-calibrated pressure to the cooking plate of approximately 300N. ARCOL FPA Thick Film Power Resistors have an operating temperature range of -55°C to +150°C or +155°C and are RoHS compliant.


  • FPA2K
    • 2000W operating power
    • Noninductive design
    • High insulation and partial discharge performance
    • Materials in accordance with UL94-V0
  • FPA250
    • Noninductive performance for HF applications
    • Power applications 100W to 250W
    • Very good power/volume ratio

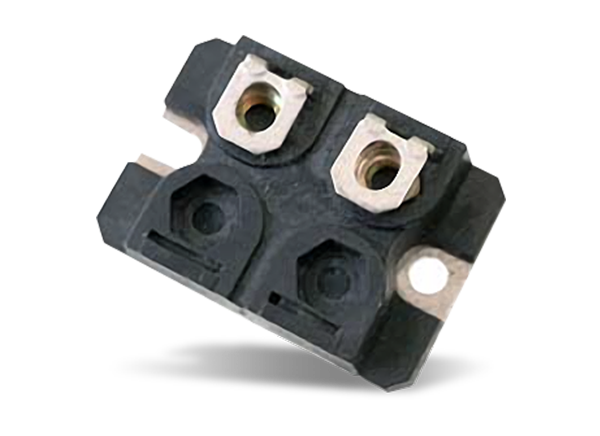

  •  FPA100
    • Isotop/SOT227 semiconductor style
    • 100W dissipation in a small footprint
    • Very low inductance
    • Direct heat sink mounting
  • Common
    • RoHS compliant
    • -55°C to +150°C or +155°C operating temperature range
Published: 2008-06-18 | Updated: 2022-03-11
