Critical Link MitySOM-AM57F System on Modules

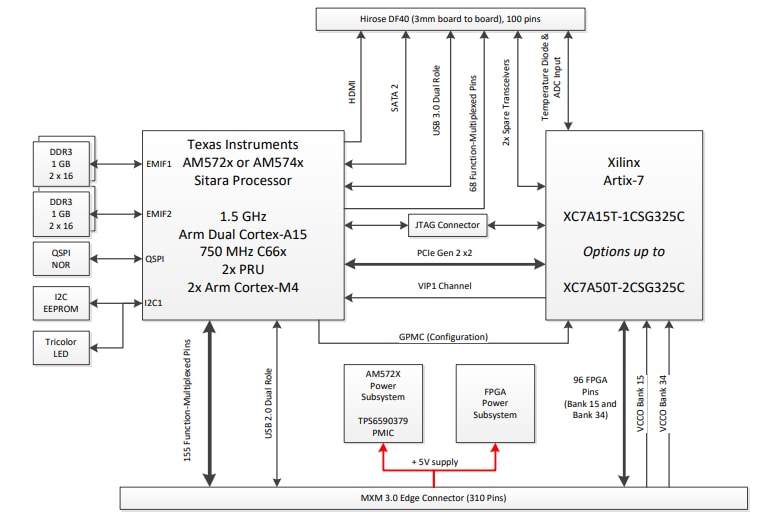

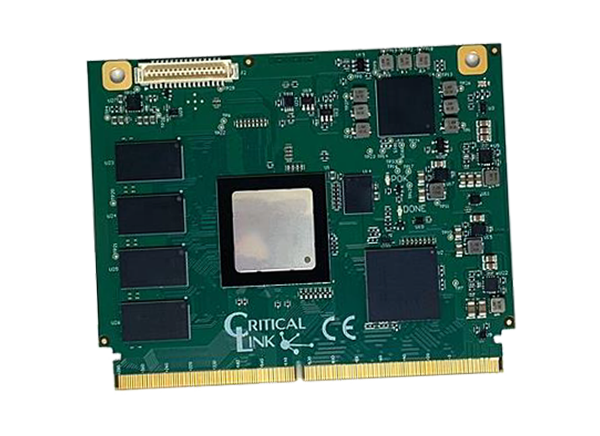

Critical Link MitySOM-AM57F System on Modules are highly configurable, very small form-factor processor cards with a Texas Instruments AM57xx series 1.5GHz Sitara Processor. The modules feature an integrated Xilinx Artix-7 Field Programmable Gate Array (FPGA), NOR FLASH, and DDR3 RAM memory subsystems. The design of the MitySOM-AM57F allows for developing programs/logic images for all of the compute elements on the AM57xx and the FGPA. The MitySOM-AM57F provides a complete and flexible digital processing infrastructure necessary for the most demanding embedded applications development.

Features

TI AM572x/AM574x Sitara Processor
- 1.5GHz Dual ARM Cortex-A15
  - ARM Neon and HW floating point
  - 32KB L1 Program/Data Cache
  - 2MB L2 cache
- Up to 2 C66x floating-point DSPs
  - 750MHz operation
  - 32KB L1 Program/Data Cache
  - 288KB Internal SRAM
- Hardware Acceleration
  - Power VR SGX544 3D GPU
  - H.264 Video Encode/Decode
  - Up to 4 Embedded Vision Engines
  - 2x ARM Cortex-M4 co-processors
  - 2x dual-core PRUs
  - Crypto Hardware accelerators
On-Board Xilinx Artix-7 FPGA
- Up to XC7A50T
  - Up To 2,700 KBits Block RAM
  - Up To 52,160 Logic Cells
- PCIe Interface to AM57x
- 2 Transceivers available for external IO

Up To 4GB DDR3 RAM on dual banks
Up To 32MB QSPI based NOR FLASH
Integrated Power Management
Dual Edge and Board to Board Connectors
- 96 FPGA I/O Pins
- 223 AM57xx Multiplexed IO’s
  - 2x 10/100/1000 EMAC / MDIO
  - 2x 10/100 EMAC supporting EtherCAT
  - McASP (audio) interface
  - Camera/Video Input
  - 2x MMC/SD
  - SATA-2 (6Gbps)
  - HDMI 1.4a Output
  - 3x I²C, 3x UART, > 50 GPIO
- 1x USB 2.0 dual-role
- 1x USB 3.0 dual-role
